OBS Recording – How to Record Screen Video with Best OBS Recording Settings

September 09, 2020Amanda Brown

How to record gameplay videos via OBS screen recorder without choppy? What should be the best OBS recording settings? OBS has a whole video settings suite that enables you to record the video with a high quality. The article will share some OBS recording functionality and hidden facts that help you to use the program to record the desired video easily.

OBS Recording

Part 1: The Best OBS Settings for Recording Gameplay Video

In order to record gameplay videos with OBS screen recorder, you can go to the Controls menu in the left corner and select the Settings option. When you want to get the best video quality, you should turn off the other unrelated programs within your computer.

OBS Settings

The Best OBS Recording Settings for Recording Video

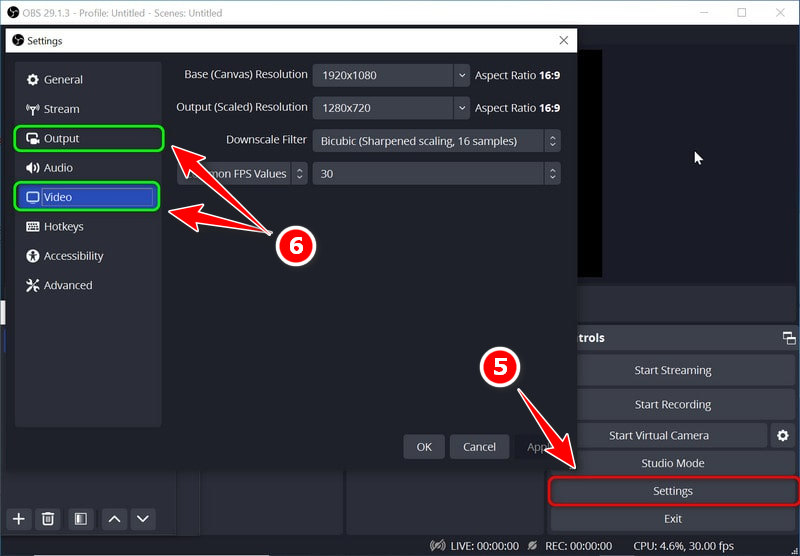

Head to the Video tab in the Settings window. It enables you to determine the Base (Canvas) Resolution, which is able to capture the full size screen, or a smaller portion. You can choose to capture a full HD 1080P (1920X1080) for the Output (Scaled) Resolution. As for Downscale Filter, you should choose the best OBS recording settings as Lanzos, which provides the best video quality. The last and most important one is FPS, you can always record a better quality with a higher FPS, but usually 60FPS is enough for the social media websites.

Recording Settings

The Best OBS Recording Settings for Output File

Go to the Output tab in the Settings window. Select the Output Mode as the Advanced option. Change the Video Bitrate to 2500Kbps and Audio Bitrate to 160 or higher. Moreover, you can check the Enable Advanced Encoder Settings option to choose a desired encoder preset, or even custom encoder settings. Then select the Recording Quality option as the Lossless Quality, Tremendously Large File Size. As for the best OBS recording settings for the output video format, MKV is the recommended one. If you want to share the videos to social media, you can choose MP4.

Output Settings

The Best OBS Recording Settings for Audio File

When you want to Audio tab, you can choose the Sample Rate as 48kHz and Channels as Stereo option. Moreover, you can also tweak the Desktop Audio option, Mic/Auxiliary Audio option, and more others parameters. After that, you can tweak the Decay Rate option and Peak Meter Type option to get the best OBS recording settings for audio files. (How to fix OBS black screen?)

Audio Settings

Part 2: Best OBS Alternative to Record Gameplay Video

If you still have a choppy OBS screen recording, is there an OBS alternative method to capture screen with advanced settings? Aiseesoft Screen Recorder is a versatile screen recorder that enables you to capture screen video, audio as well as snapshots. Moreover, you can also tweak the video settings, set up a task schedule for screen recording, and even edit the recording files and screenshots with ease.

Screen Recorder


Aiseesoft Screen Recorder

  • Record all onscreen activities, including screen video, audio and snapshots.
  • Tweak the video quality, video codec, frame rate, audio quality and others.
  • Add annotation, mouse click, shapes, callouts, and texts in different fonts.
  • Trim and edit the recorded video and audio files within the built-in editor.
Step 1:
Download and install Aiseesoft Screen Recorder, launch the program on your computer. When you need to set up the same OBS recording settings, you can go to the Menu option and select Preferences to adjust settings for recording.
Step 2:

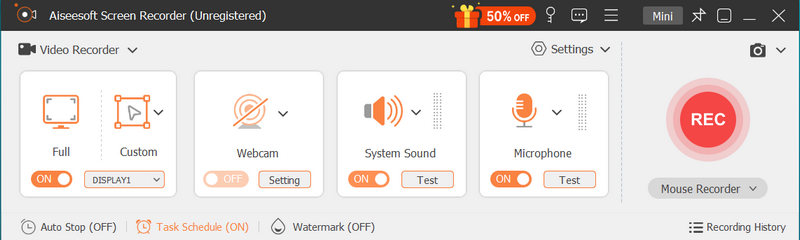

Back to the home interface, you can click the Video Recorder option to select the desired recording area. Select the audio source by toggling on the System Sound option, the Microphone option, or both of them to record the desired audio files.
Video Recorder
Step 3:

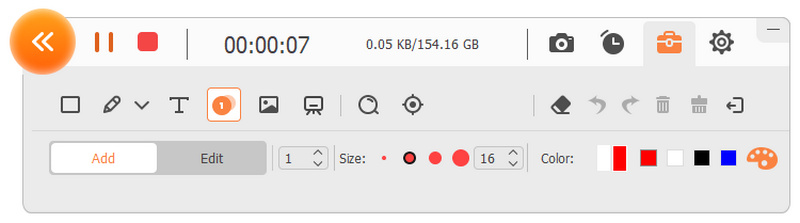

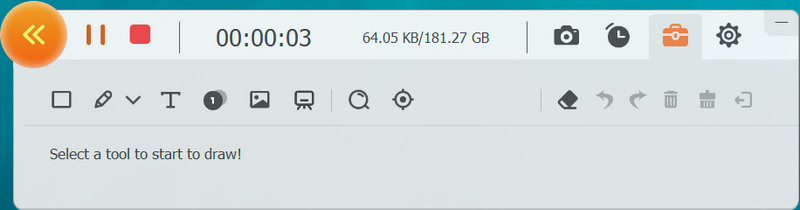

After that, you can click the REC button to start recording the screen video. During the process, you are able to edit the video and add text, line, arrow and more. Click the red Stop button to save the recording video to your computer accordingly.

Part 3: FAQs about The Best OBS Recording Settings

1. How to Fix OBS Recording Settings Lag?

When you record the gameplay videos with OBS, you might find the screen recording choppy. You should turn off Lookahead and Psychovisual Tuning to switch off the Max Quality option. It will use the hardware acceleration and are interfering with your encoding to record with OBS with the best quality.

2. What are the Best PC Settings for OBS Recording?

In order to fix the OBS recording choppy, you should have another check for the network connection. Disconnect from your router, and then connect the computer directly to the modem using Ethernet cable. Besides, you can also check your firewall and security software and update network adapter driver to find whether it works.

3. What is the Alternative Solution if OBS Recording Audio Choppy?

How to fix the OBS recording audio choppy? When you need to have another record, you can use the advanced output settings, please try to set the audio bitrate back to 160. Moreover, you can also install C++ and make sure that the sample rate in Streamlabs OBS, which should be the same as the one for your audio device in Windows audio settings.


When you have some OBS recording audio choppy, you can learn more about the best OBS recording settings. The article shares the information about how to tweak the settings for video, audio and recording output. Moreover, you can also learn more about the frequently asked questions about how to fix OBS recording choppy from the article.
